Product Features:

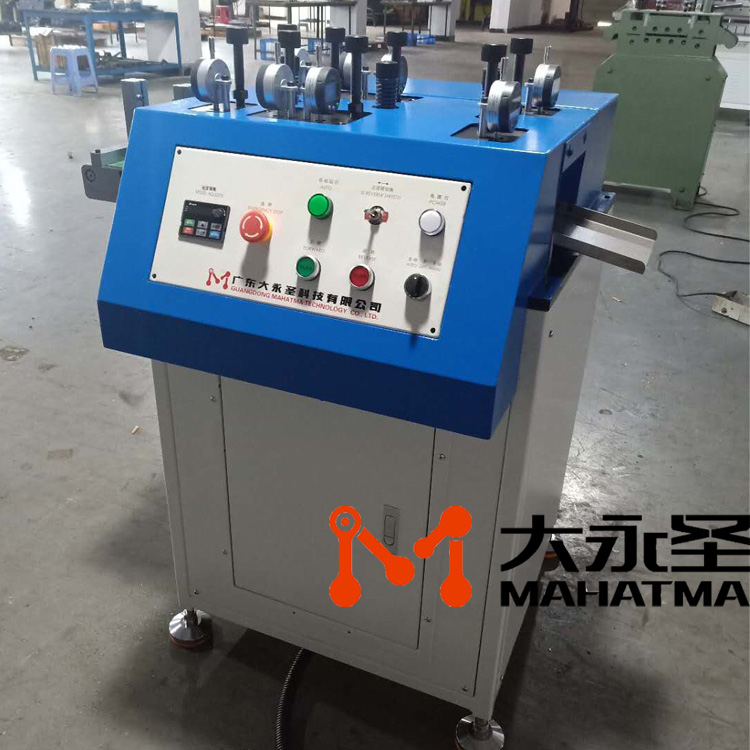

1. SCS-150-41 is a special custom-made automatic sheet material assembly line high-precision leveling machine, suitable for precision roller leveling of metal circles, sheets, strips and various stamping products with a thickness of 0.1-0.6mm , mainly for the leveling of small and thin materials with high surface requirements such as aluminum plates, copper plates, and small stainless steel plates, which will not deform and rebound after leveling.

2. This series of leveling machine is a multi-roller precision leveling machine. The leveling drum is 12 in the front and 29 in the rear. The upper and lower rollers are each equipped with two sets of auxiliary support rollers. The rollers are processed with imported chrome steel and heat treated to HRC60. Post-grinding, then hard chrome plating, and then fine grinding to ensure uniform hard chrome layer and shape tolerance of each shaft; grinding and polishing the surface of the drum to prevent damage to the material product caused by the rotation and extrusion of the drum;

The leveling machine adopts a row of intermediate rollers between the upper and lower rows of leveling work rolls and the support bearings (wheels) to form a double-layered and four-folded roller structure; the force distribution of the leveling rollers is uniform, and the structure Good rigidity, work

3. The deflection and deformation of the working roller is small, the leveling accuracy is high, and the stroke harmonic attenuation is straightened, which fundamentally solves the common leveling unevenness problem in ordinary leveling, improves the straightening accuracy of the plate, has a wide range of applications, and does not leave any residue on the surface of the material. Lower rolling marks, high correction accuracy.

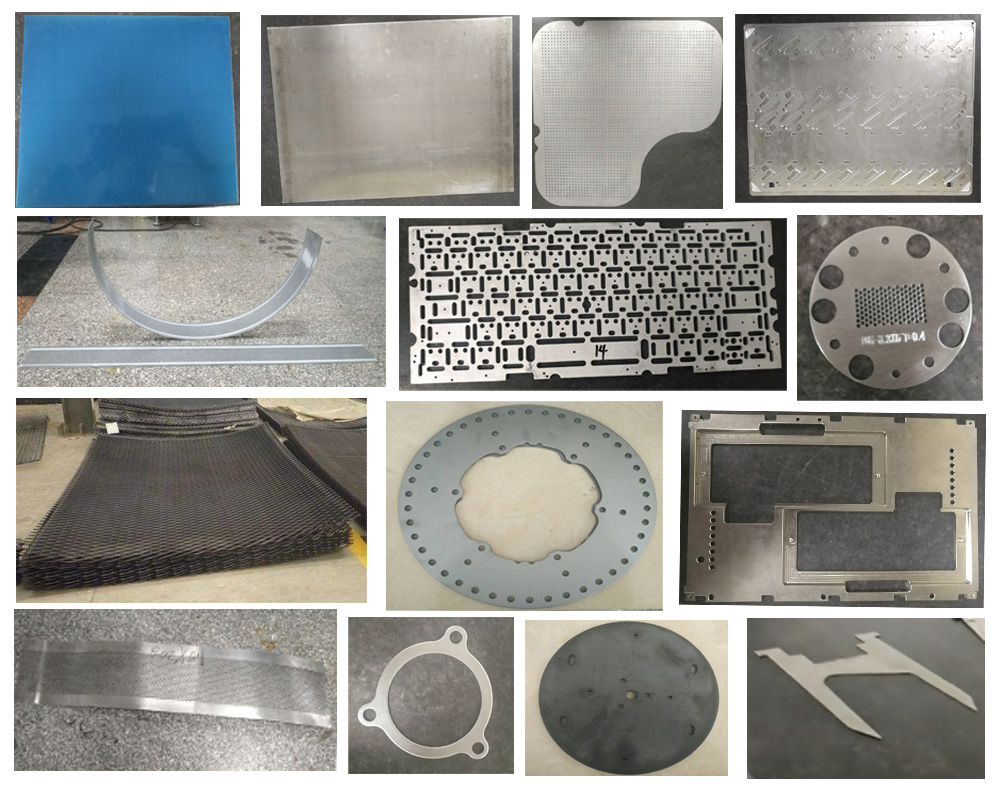

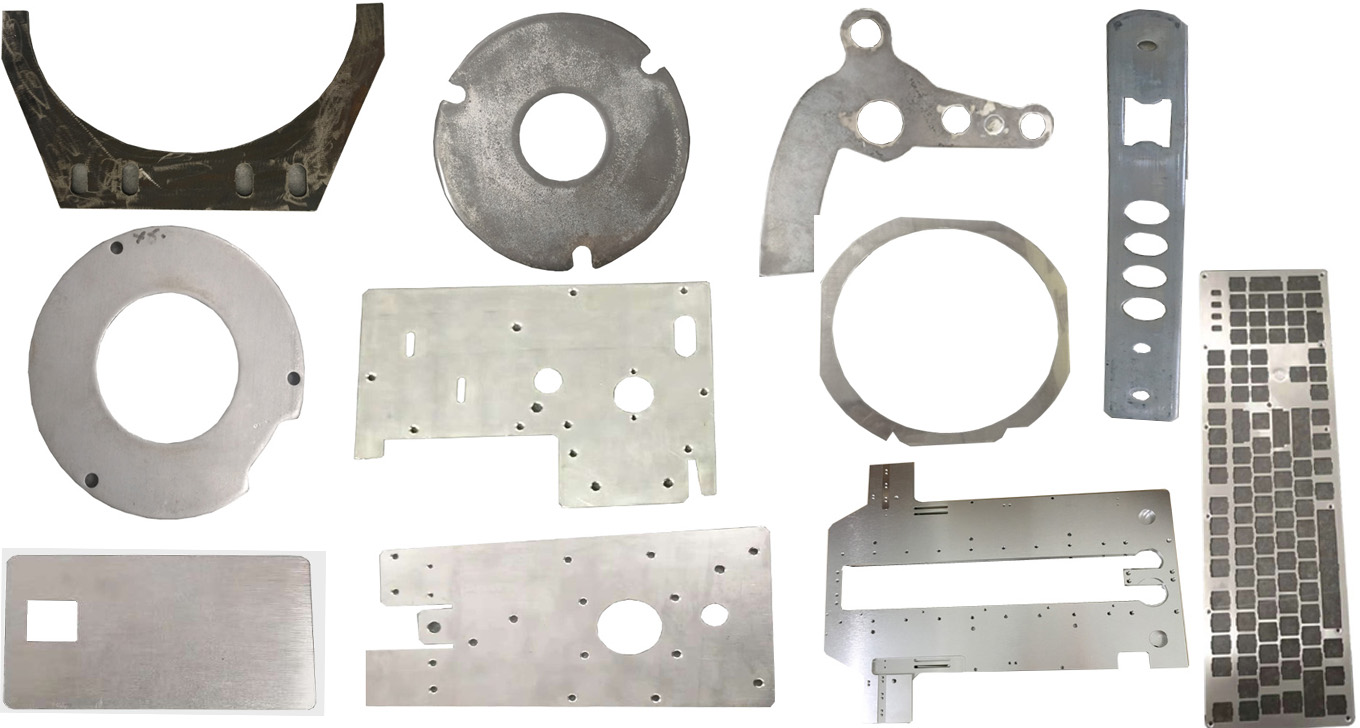

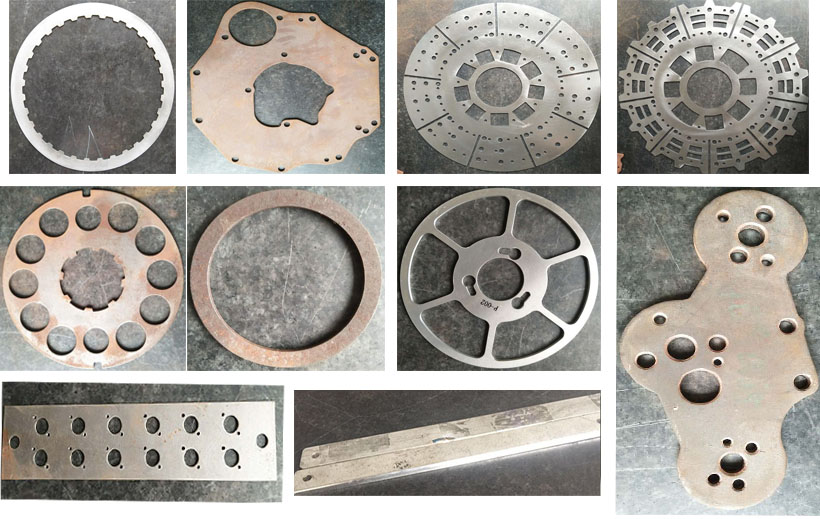

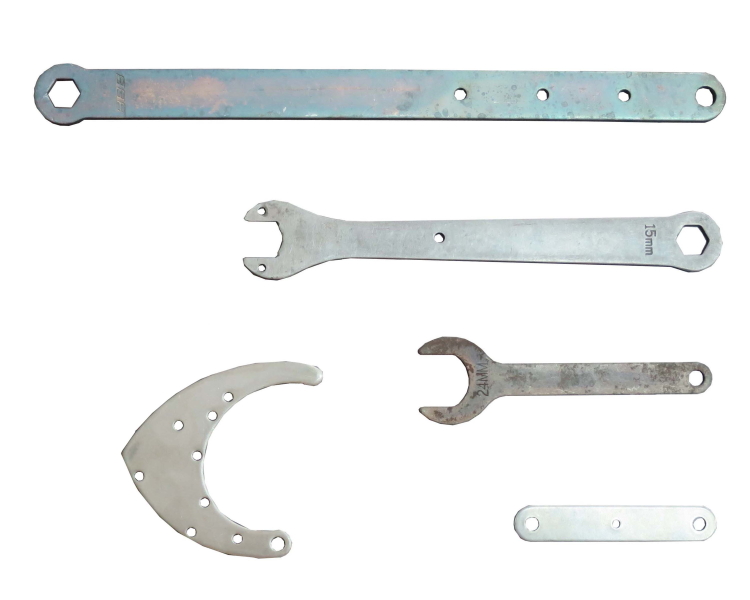

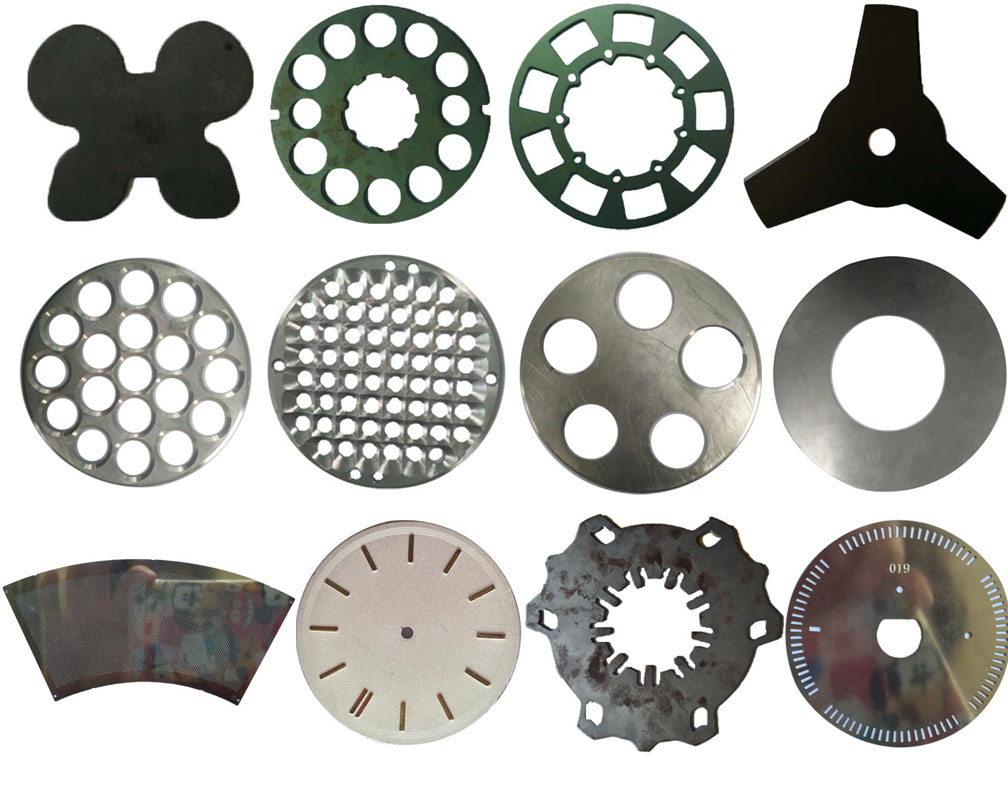

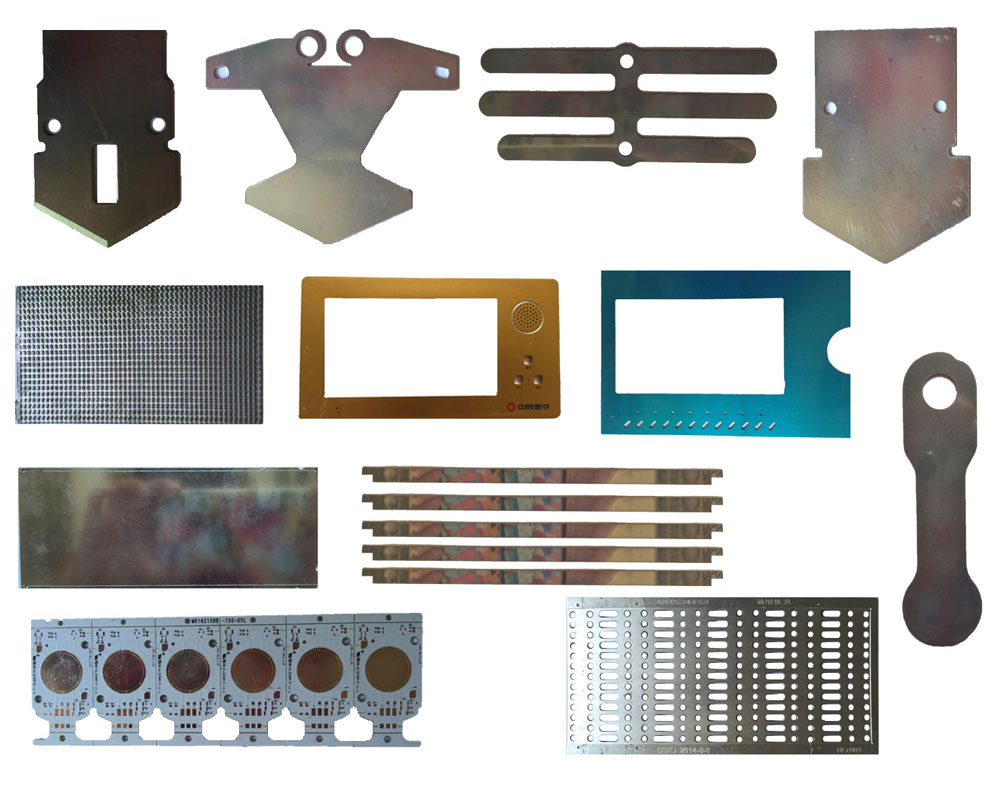

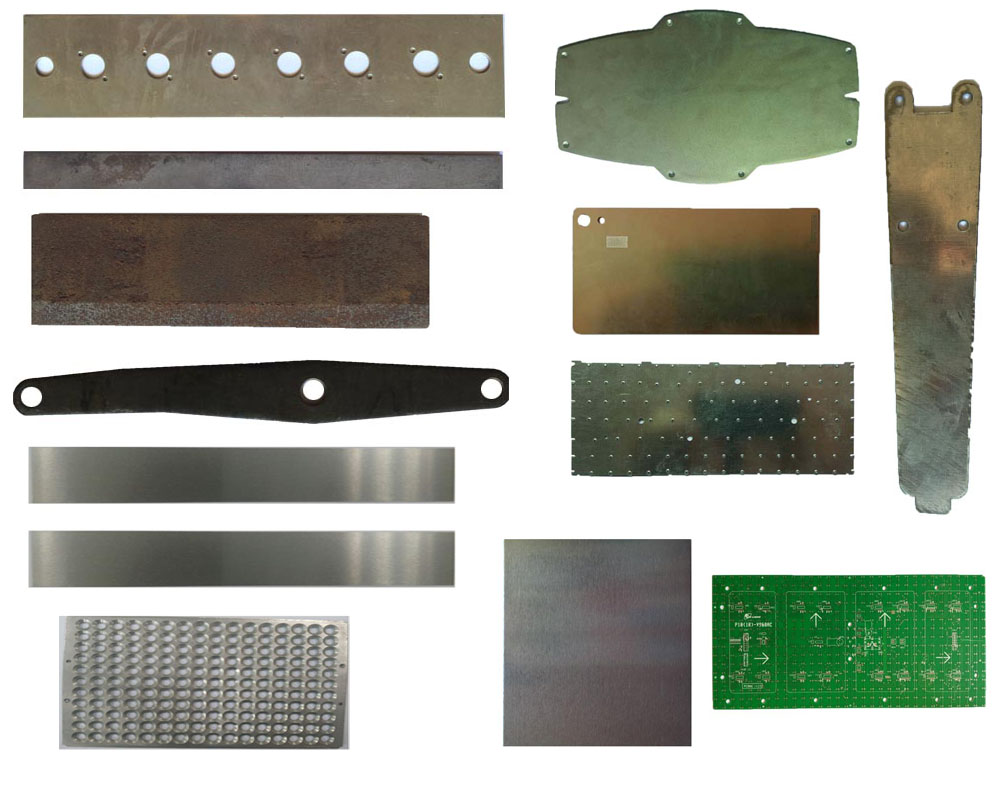

Sample Display:
