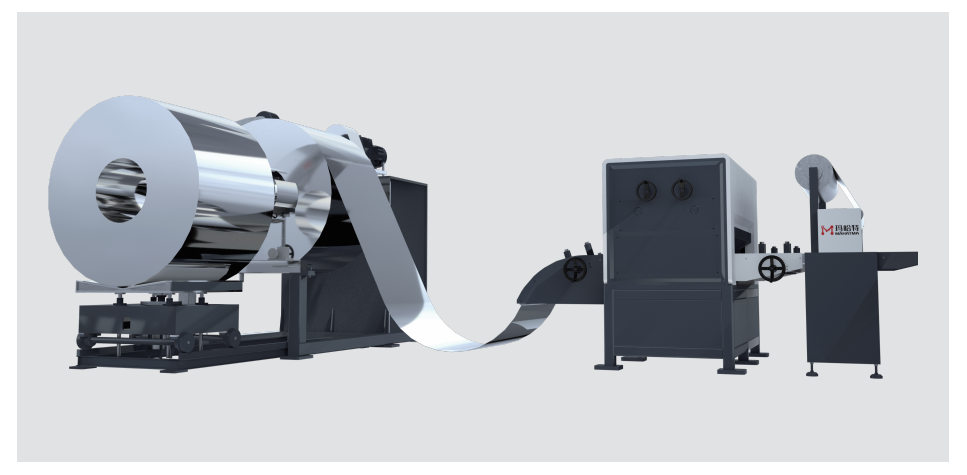

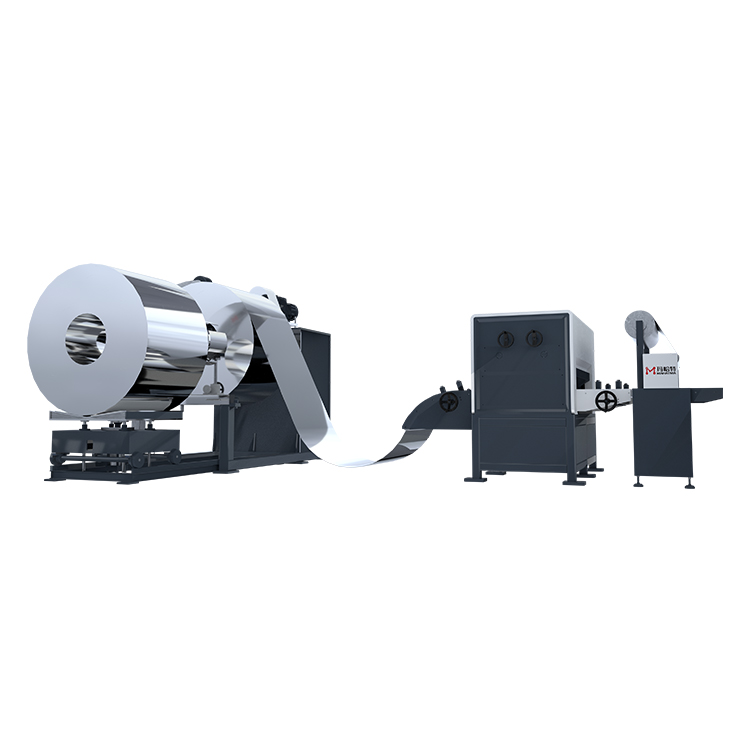

Coil M series
The support rod is installed, the leveling force is evenly distributed, and the structural rigidity is good High leveling accuracy, wide application range, no indentation on the surface of the material Equipped with trolley feeding, saving time and effort
- 24-hour customer
- Guarantee
- Speed per hour
- 產(chǎn)品介紹
- Parameters
- Video
- Related products
Product introduction
Add a support rod, the leveling force is evenly distributed, and the structure is rigid
High leveling accuracy, wide application range, no residue on the material surface Indentation

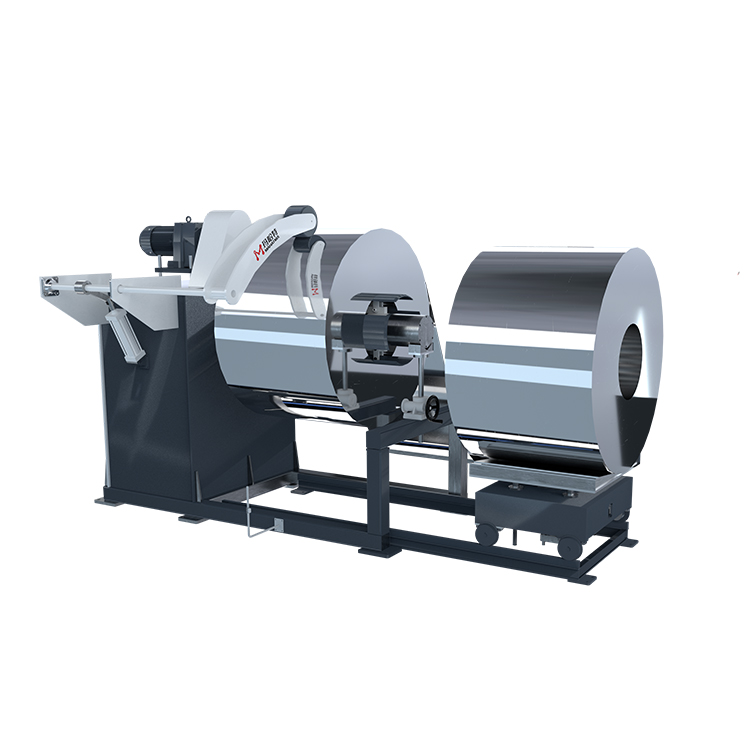

With trolley loading, saving time and effort
Product parameters

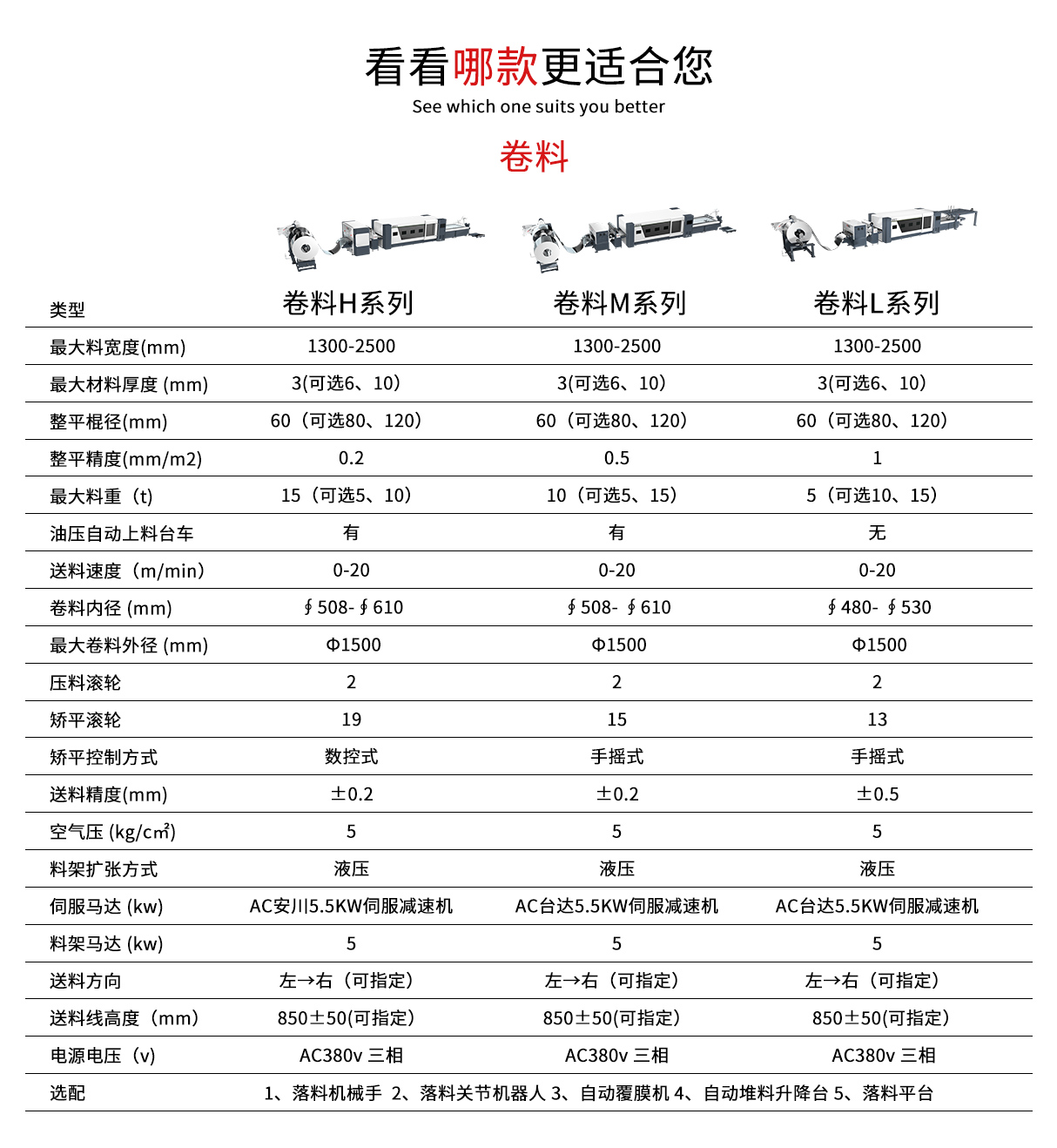

| Shear Line Technical features | ||||
| Model | MHTS-1300M | MHTS-1500M | MHTS-2000M | MHTS-2500M |
| Maximum Width(mm) | 1300 | 1500 | 2000 | 2500 |
| Maximum Thickness(mm) | 3/6/10 | 3/6/10 | 3/6/10 | 3/6/10 |
| Roller Diameter(mm) | 60/80/120 | 60/80/120 | 60/80/120 | 60/80/120 |
| Leveling Accuracy(mm/m2) | 0.5 | 0.5 | 0.5 | 0.5 |
| Maximum Weight(t) | 5/10/15/20 | 5/10/15/20 | 5/10/15/20 | 5/10/15/20 |
| Automatic Hydraulic Feeding Trolley | Yes | Yes | Yes | Yes |
| Speed(m/min) | 0-20 | 0-20 | 0-20 | 0-20 |
| Inner Diameter(mm) | ∮508- ∮610 | ∮508- ∮610 | ∮508- ∮610 | ∮508- ∮610 |
| Maximum Outer Diameter(mm) | Φ1500 | Φ1500 | Φ1500 | Φ1500 |
| Numbers of Roller | 15 | 15 | 15 | 15 |
| Controller | Semi-automatic | Semi-automatic | Semi-automatic | Semi-automatic |
| Feeding Accuracy(mm) | ±0.2 | ±0.2 | ±0.2 | ±0.2 |
| Air Pressure(kg/cm2) | 5 | 5 | 5 | 5 |
| Rack expansion mode | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Servo Motor | Servo + Reducer | Servo + Reducer | Servo + Reducer | Servo + Reducer |
| Rack motor(kw) | 5 | 5 | 5 | 5 |
| Feeding direction | left→right | left→right | left→right | left→right |
| Feed line height(mm) | 850±50 | 850±50 | 850±50 | 850±50 |
| Voltage(v) | AC380v | AC380v | AC380v | AC380v |

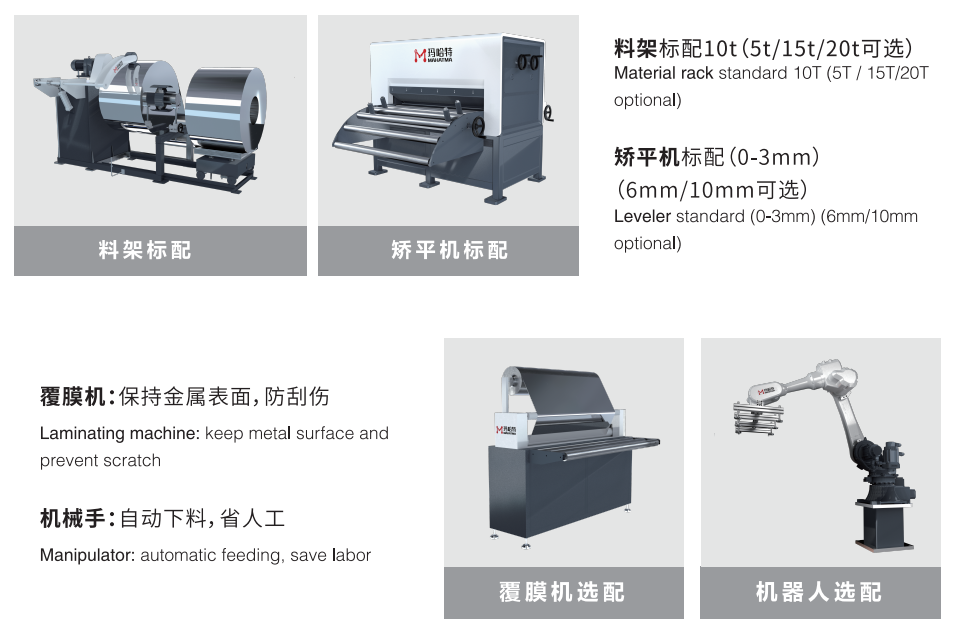

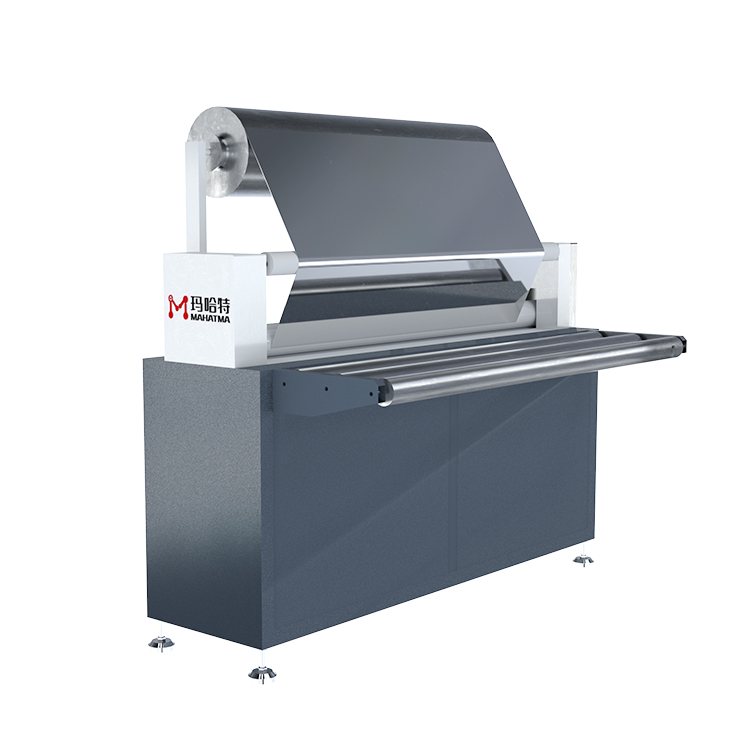

| Optional | 1. Blanking manipulator 2. Blanking joint robot 3. Automatic film laminating machine 4. Automatic stacking lifting table 5. Blanking platform | |||
